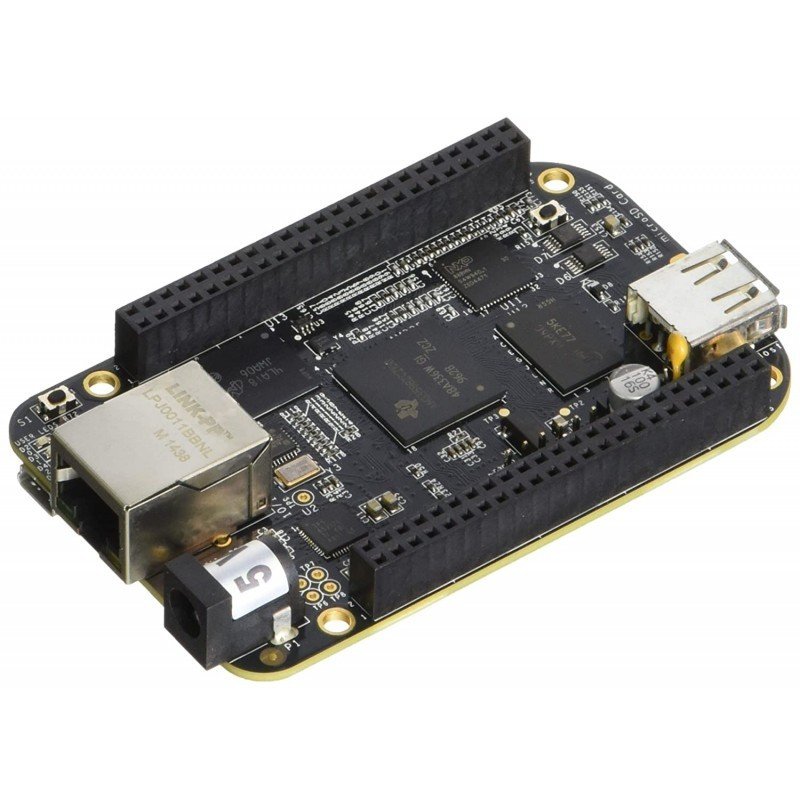

BeagleBone Black REV C

The BeagleBone Black (BBONE-BLACK-4G) is a low cost, high-expansion focused BeagleBoard using a low cost Sitara™ AM3358 ARM® Cortex™-A8 processor from Texas Instruments. The BBONE-BLACK-4G features TI’s Sitara™ AM3358AZCZ100 microprocessor, which is based on ARM®Cortex™-A8 core with enhanced image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The board is equipped with 256Mb x16 DDR3L 4Gb (512MB) SDRAM, 32KB EEPROM, and 4GB embedded MMC (eMMC) Flash as the default boot source. The board is also populated with a single microSD connector to act as a secondary boot source for the board and, if selected as such, can be the primary boot source. The BeagleBone Black supports four boot modes, including eMMC boot, microSD boot, serial boot, and USB boot. A switch is provided to allow switching between the modes.Features :-Processor:   TI Sitara AM3358AZCZ100, 1GHz, 2000 MIPS1 GHz ARM®Cortex™-A8SGX530 Graphics EngineProgrammable Real-Time Unit SubsystemMemory:SDRAM: 512MB DDR3L 800MHZOnboard Flash: 4GB, 8bit Embedded MMC (eMMC)SD/MMC Connector for microSD:Power management:TPS65217C PMIC is used along with a separate LDO to provide power to the systemDebug Support: Optional Onboard 20-pin CTI JTAG, Serial HeaderPower Source:mini USB USB or DC Jack5VDC External Via Expansion HeaderConnectivity:High speed USB 2.0 Client port: Access to USB0, Client mode via mini USBHigh Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HSSerial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated10/100M Ethernet (RJ45)User Input / Output:Reset ButtonBoot ButtonPower ButtonLED power indicator4 user configurable LEDsVideo/Audio Interfaces:HDMI D type interfaceLCD interfaceStereo audio over HDMI interfaceExpansion Interfaces:LCD, UART, eMMCADC, I2C, SPI, PWM* product image for illustration purposes only. actual product may vary.
