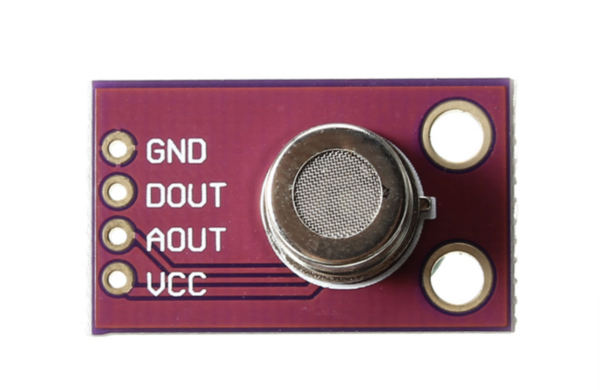

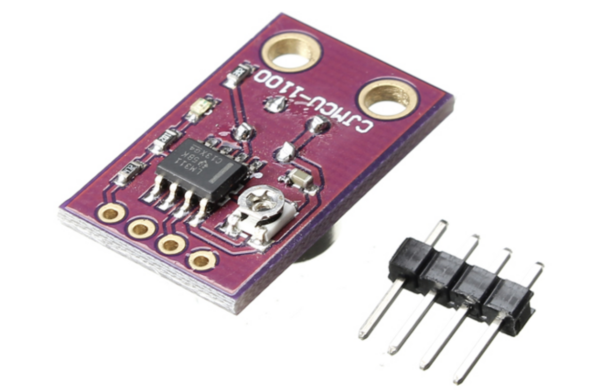

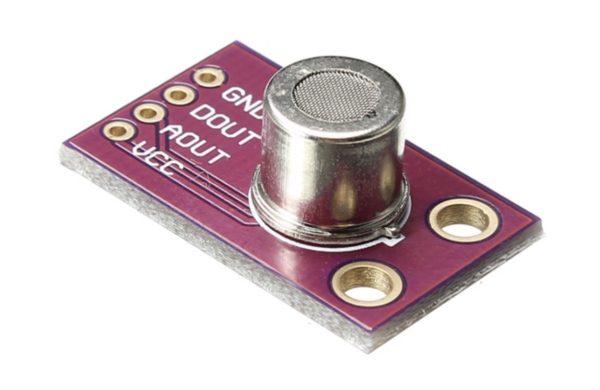

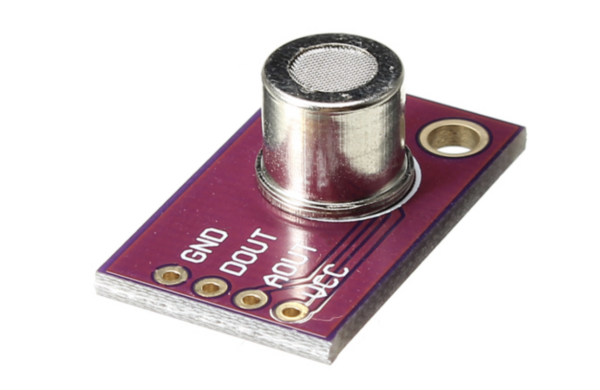

MS1100 MS-1100 VOC Gas Sensor

Description MS-1100 sensor is mainly used to detect VOC gas such as formaldehyde, toluene, benzene, etc. It is a semiconductor type sensor product, which is widely used in ventilation equipment, ventilating fan, air filter, hood and other equipment. It has extremely high sensitivity and stability, and can detect gases above 0.1ppm. It is suitable for detecting various organic volatile components such as formaldehyde, benzene, xylene, etc. in the air. 1.The heating voltage:5V /-2% 2.Working current:100mA (max) 3.The circuit voltage: 4.Sensitivity:>3% 5.Response time:<5s (preheat 3-5 minutes) 6.Response time:>10s 7.The component power consumption: =<430mW 8.Working temperature:-10~60 celsius (nominal temperature 20 celsius) 9.Humidity:90%RH (nominal humidity 65%RH) Packing List:  1 x MS1100 MS-1100 VOC Gas Sensor
