TP4056 Lithium Battery Charging Protection Board ,Type C

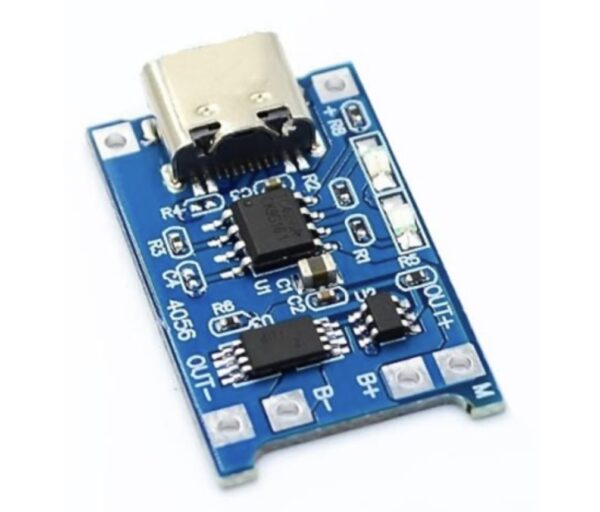

Description This tiny module is perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as the 18650s that do not have their own protection circuit. Based around the TP4056 charger IC and DW01 Deep Drain Battery Protection IC this module offers a 1A charge current. The module cuts off the charging current when finished. Furthermore when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected. Features / Specs Charger Chip: 4056H Battery Protection Components: DW01A Paired with 8205A MOSFET USB Connector Type: USB Type-C Input Voltage: 5.0VDC Constant Charge Current: 1A Default (Can be adjusted – Requires soldering) Trickle Charge Current: 130mA Default Battery Compatibility: Lithium Ion / Lithium Polymer (Single Cell – 1S) Charge Voltage: ~4.2VDC Discharge Protection Voltage: 2.5VDC Indication LEDs: Red LED indicates charging; Green LED indicates charge complete Screenshot Resources Fuman Elec TC4056H Datasheet – Original Fuman Elec TC4056H Datasheet – Translated DW01A Battery Protection Chip Datasheet 8205A Dual MOSFET Datasheet Packing List: 1 x TP4056 Lithium Battery Charging Protection Board ,Type C
