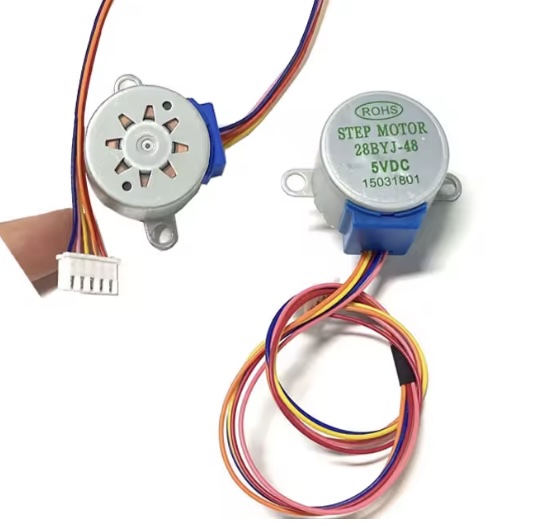

28BYJ-48 Stepper Motor – 5V

Description Specification: Stepper Motor Type: 4-Phase Unipolar (5 Wire) Wire Configuration: 4 Individual Coil Wires, 1 Common Wire internally connected to each coil Rated Coil Voltage: 5V Steps Per Revolution (Before Gearing): 32 (11.25° per step) Gear Ratio: 63.6895 : 1 (Driver Gear : Driven Gear) Steps Per Revolution (After Gearing): ~2038 (0.18° per step) Average Consumption @ 5VDC, 250 Steps Per Second (No Load): ~240mA Torque (Full Step Mode @ 5VDC): 821gf·cm (11.40z·in) @ ~200mA Torque (Half Step Mode @ 5VDC): 598gf·cm (8.3oz·in) @ ~256mA Resources Last Minute ENGINEERS Tutorial And Explanation Screenshot Screenshot Packing List: 1 x 28BYJ-48 Stepper Motor – 5V
