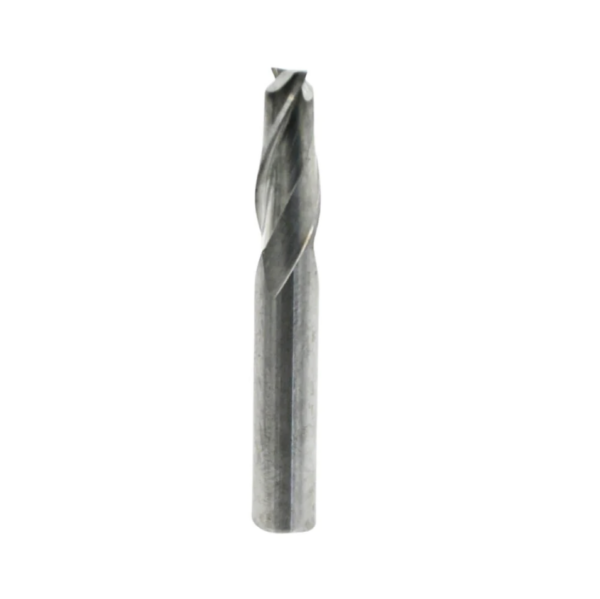

Double Flute End Mill Cutting Bit – 6mm Bore

Description Double Flute tungsten carbide end mill to cut a wide variety of materials. A double flute cutter has a flat bottom end which creates a smooth bottom surface. The low flute count also work better with materials which is sensitive to heat generated by the cutting bit, like plastics. Specifications: Bit Type: Double flute end mill cutter Material: Tungsten Carbide Diameter: 1mm, 1.5mm, 2mm, 2.5mm, 3.175mm, 4mm, 6mm (Please select from the menu above) Materials to cut: Wood, Plastic, Aluminium, Brass, Composites, Cardboard and Structural foam Cutting Edge Length: Bit Diameter Cutting Edge Length 1mm 6mm 1.5mm 8mm 2mm 12mm 2.5mm 15mm 3.175mm 22mm 4mm 10mm 6mm 15mm 8mm 25mm Shank Diameter Bit Diameter Shank Diameter 1mm 3.175mm (1/8′) 1.5mm 3.175mm (1/8′) 2mm 3.175mm (1/8′) 2.5mm 3.175mm (1/8′) 3.175mm 3.175mm (1/8′) 4mm 4mm 6mm 6mm 8mm 8mm Cutting bit total length: 1mm to 3.175mm: 38mm 4mm & 6mm: 45mm 8mm: 50mm
