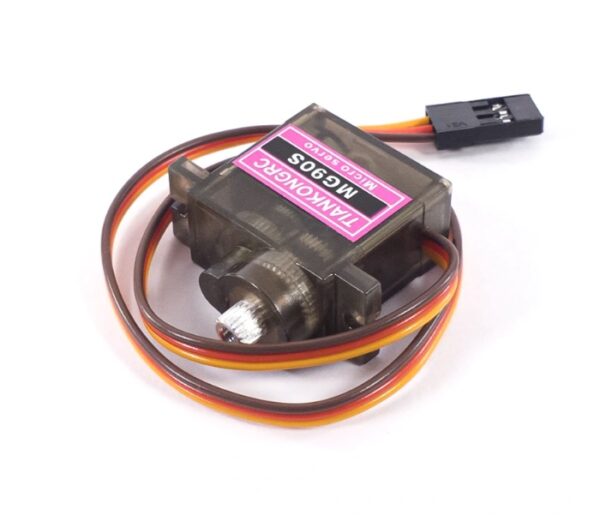

MG90S Servo Motor 180° Metal Gear

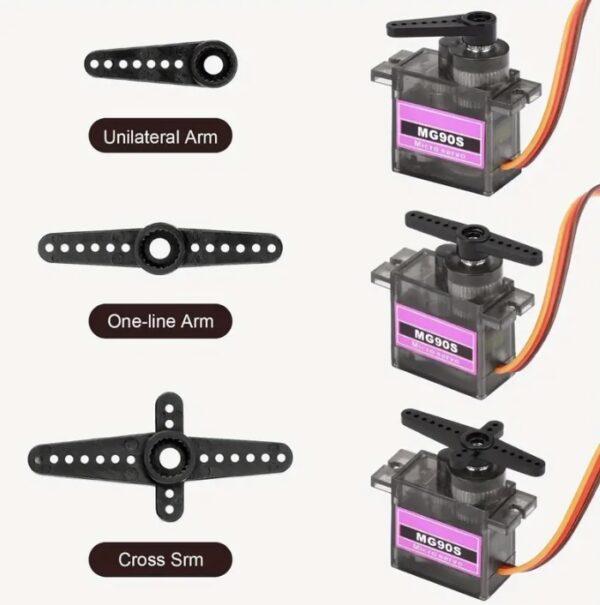

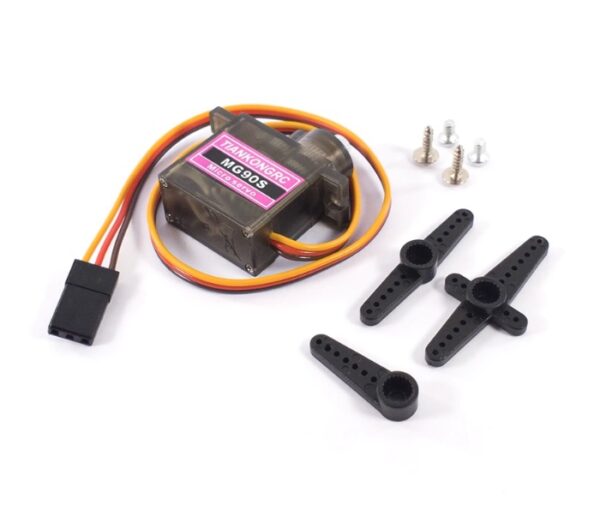

Description Specifications: Model: MG90S Manufacturer: TianKongRC Range of Motion: 180° Operating Voltage Range: 4.8 – 6.0VDC No-Load Speed: 0.12sec/60° No-Load Current: 90mA/6V Stall Torque: 2.0kg-cm/6V Stall Current: 750mA ±10% Quiescent Current: 5 – 6mA Control Signal: Analog (PWM) Midpoint Position: 1500µsec PWM Range: 500 ~ 2500µsec Cable Length: ~24cm Servo Connector: JR (2.54mm Pitch) Output Shaft: 20T (Diameter = ~4.9mm) Gear Material: All Metal Servo Motor Weight (Excluding Accessories / Including Cable): ~12.7g Dimensions: ~(22.8mm x 12.1mm x 22.4mm) Wire Colour Description Brown Wire-> Ground Red Wire-> Supply Voltage (4.8 – 6VDC) Orange Wire-> Signal Pulse Input Screenshot Packing List: 1 x MG90S Servo Motor 180° Metal Gear 1 x Servo Accesories
