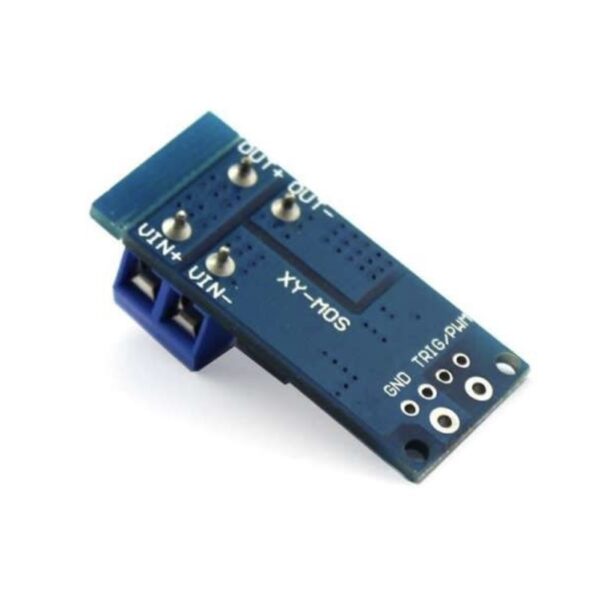

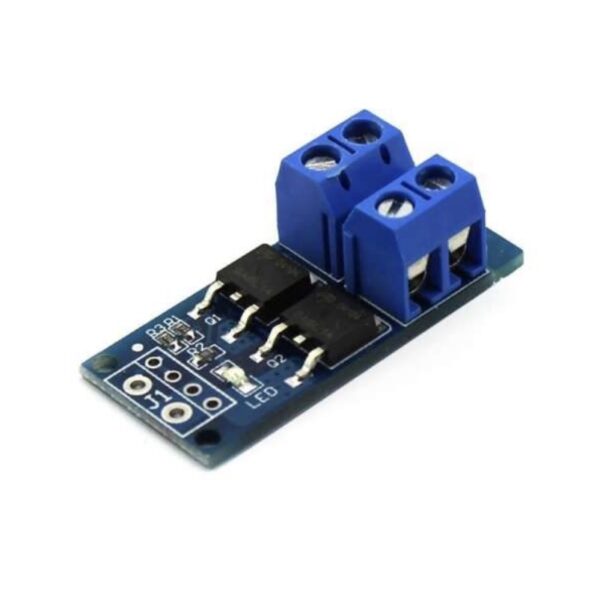

MOS PWM Trigger Switch Drive Module 15A 400W

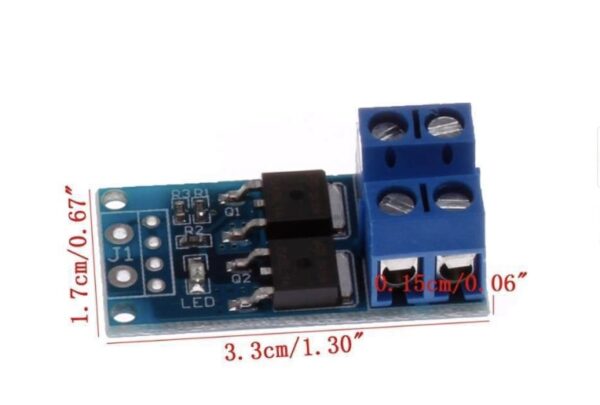

Description The PWM Mosfet module is suitable for controlling pulse width modulation controlled receivers such as LED PWM power supplies, as well as for speed control of DC motors The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment Wide voltage, the perfect support for PWM Easily control high power devices Input PWM to achieve motor speed control, lamp brightness control Specifications Operating Voltage: DC 5V – 36V; The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces,  DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support. Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary  cooling conditions, the maximum current up to 30A. Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,  solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness. Availability: unlimited switch Operating temperature: -40-85 Dimension: 34mm x 17mm x 12mm Screenshot Packing List: 1 x MOS PWM Trigger Switch Drive Module
