TB6600 Stepper Driver
$ 10.99

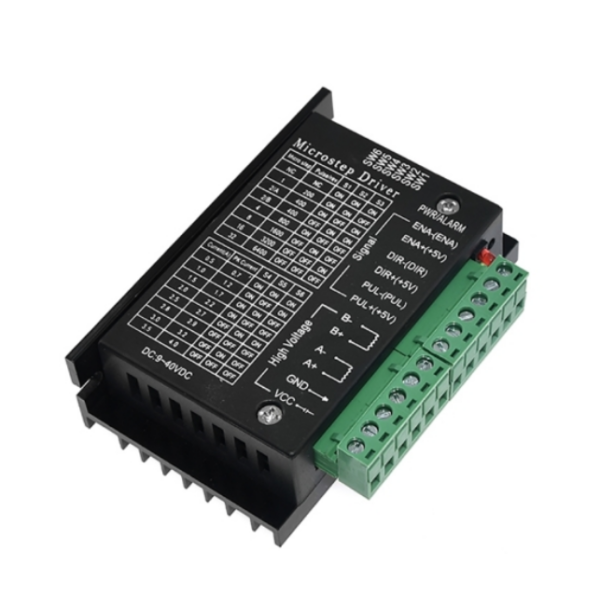

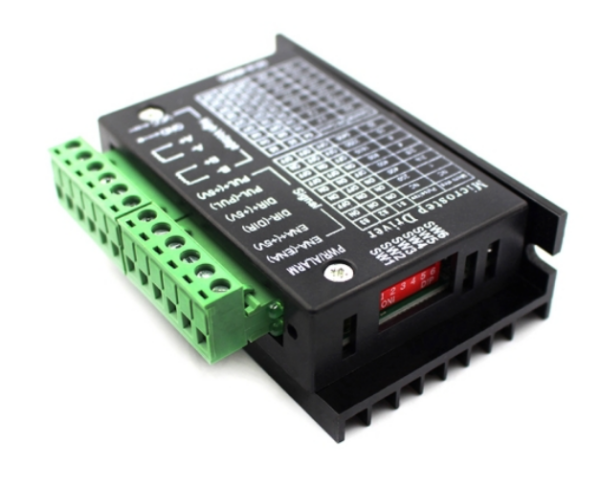

Description TB6600 Stepper Motor Driver Our TB6600 Stepper Motor Driver is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 stepper motor driver has a wide range power input 9~42VDC power supply. It is able to output 4A peak current, which is enough for the most of stepper motors. Features: For two-phase stepper motors Arduino compatible Able to output a 4A peak current 8 kinds of current control from 0.5A to 3.5A and 7 kinds of micro steps Power input from 9 to 42VDC Value Min Nominal Max Voltage (Vdc) 9 24 40 Current (A) 0.7 – 4 Power loss (mA) 7 10 16 Switich Frequency (kHz) 0 – 50 (m Ohm) 500 – – Dimensions: Wiring Diagram:
