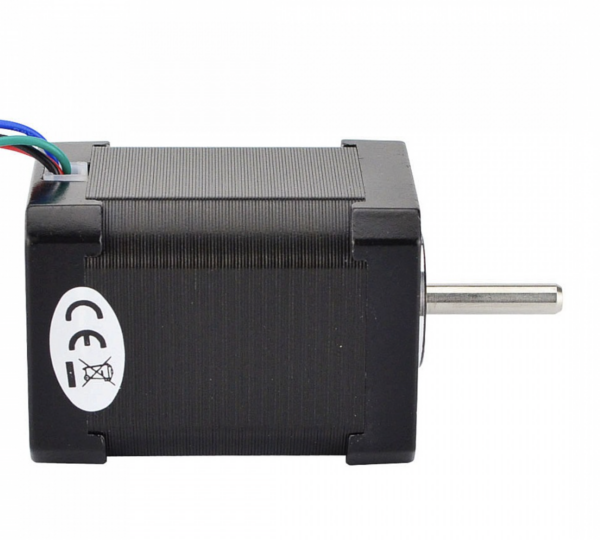

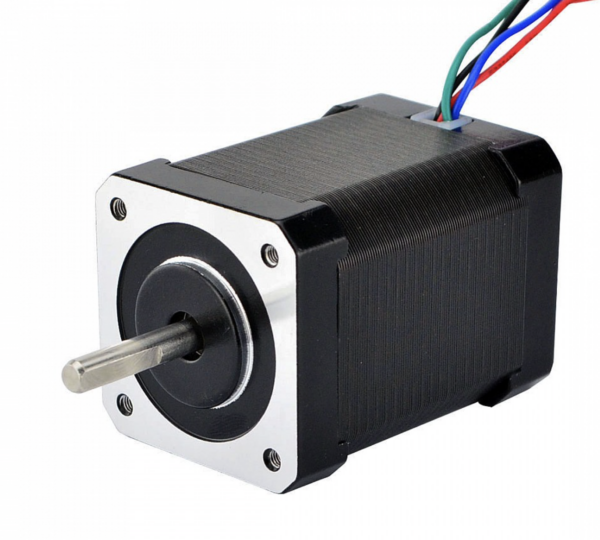

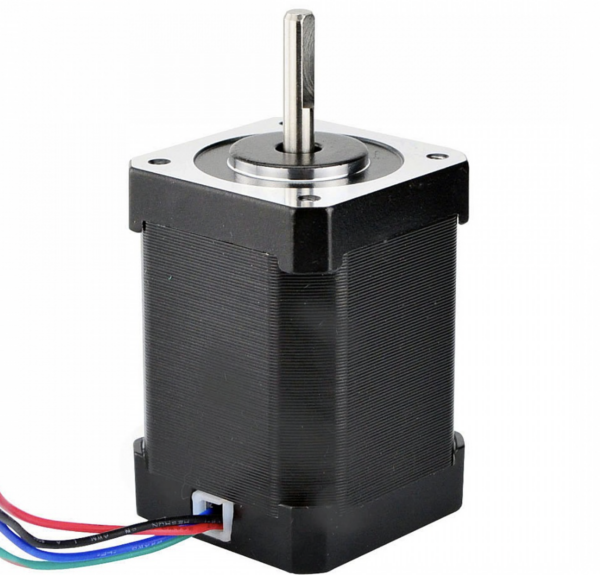

Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires

Description This is the strongest bipolar Nema 17 stepper motor we have, it with step angle 1.8deg and size 42x42x60mm. It has 4 wires, each phase draws 2.1A, with holding torque up to 65Ncm(92oz.in).   Electrical Specification Manufacturer Part Number: 17HS24-2104S Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 65Ncm(92oz.in) Rated Current/phase: 2.1A Phase Resistance: 1.6ohms Inductance: 3mH±20%(1KHz) Physical Specification Frame Size: 42 x 42mm Body Length: 60mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 500g Connection A A- B B- Black Green Red Blue   Resources Full Datasheet: 17HS24-2104S.pdf Torque Curve: 17HS24-2104S Torque Curve.pdf
