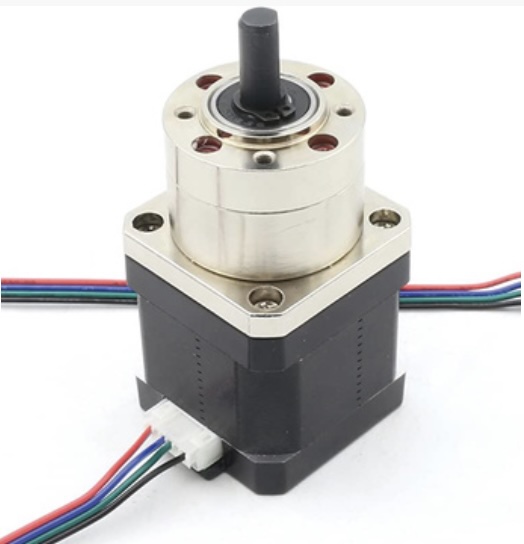

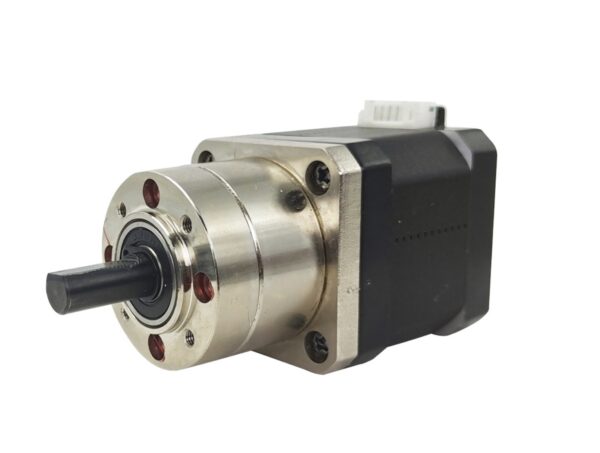

NEMA17 42 Planetary Gear Reduction Motor

Description Specifications Reduction ratio 1:5.18 Modle: 17HS15-1684S-PG5 Motor Type: Bipolar Stepper Angle Step: 1.8 ° (W / O Gearbox) Holding Torque: 42 Ncm Rated Current / Phase: 1.6 to Phase Resistance: 1.6 ohms. Recommended voltage: 12 – 24 V Inductance: 3.0 MH ± 20% (1 kHz) Gear type: Planetary gear Gear ratio (exact Gear Ratio): 57/11 Efficiency: 92% Gunner at no load: <= 1 ° Max .Torque: 1.2 Nm (170oz-in allowable) Allowable torque Torque: 2.5 Nm (354oz-in) Maximum load axial axis: 8 N Maximum load radial axis: 35 N Wiring: Red: B- Blue: B Green: A- Black: a Screenshot Screenshot Packing List: 1 x Motor 1 x Cable
