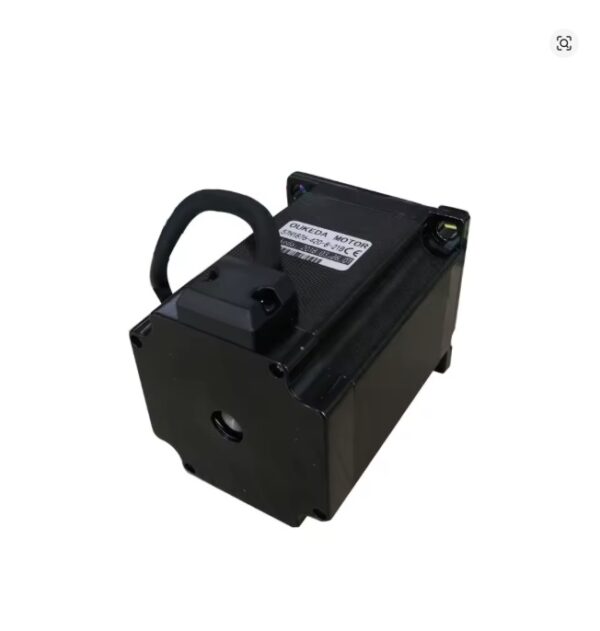

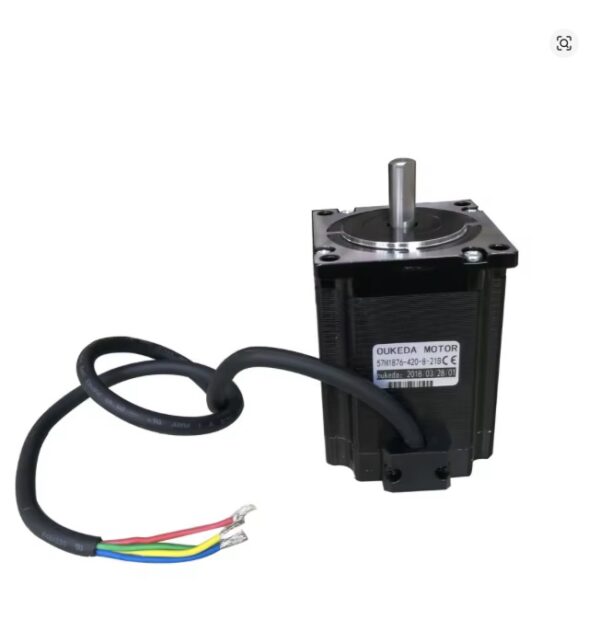

OUKEDA 57BYGH76 Nema 23 Stepper Motor 1.8 Degree 4.2A 1.8Nm
$ 30.21
Description Specifications: No. of Phase: 2 Phase 4-wires. Rated Phase Current: 2.8A. Phase Resistance: 1.0. Phase Inductance: 5.0mH. Step Angle: 1.8o. Shaft Diameter: 8.00mm D-Shape. Rated Voltage: 12V – 24V DC. Holding Torque: 176Ncm. Connector: XH 4-pins 2.54mm pitch. Wire length: 100cm. Frame size: 56mm x 56mm. Motor Body Length LMAX: 76mm. Screenshot Packing List: 1 x 57BYGH76 Nema 23 Stepper Motor 1.8 Degree 4.2A 1.8Nm
