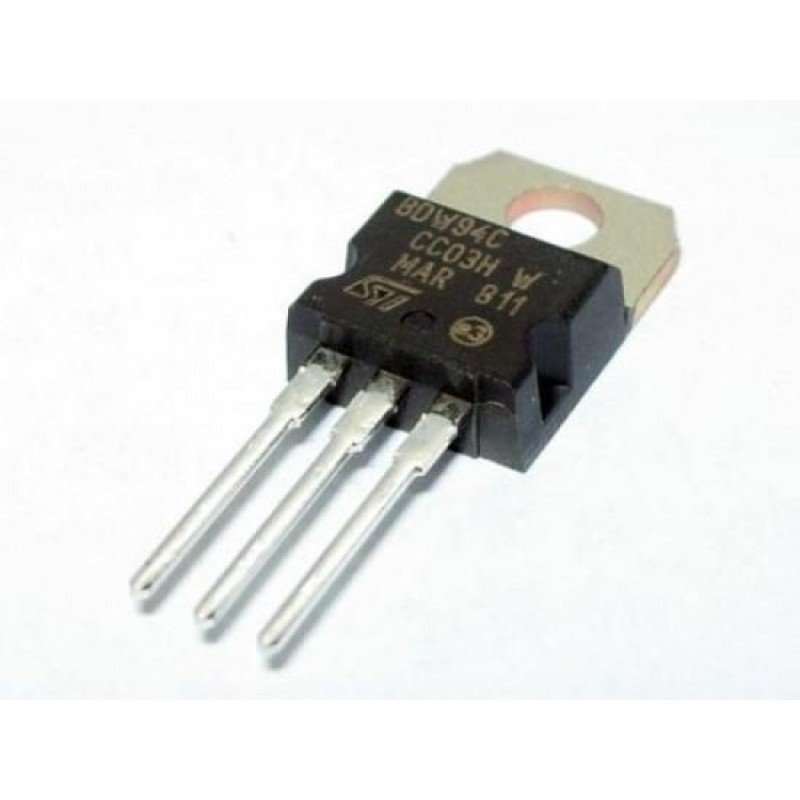

BDW94C PNP Power Darlington Transistor 100V 12A TO-220 Package
$ 4.80
BDW94C PNP Power Darlington Transistor 100V 12A TO-220 PackageThe BDW94C is a high-current PNP Darlington power transistor designed for high-power amplification and heavy-duty switching applications. With a collector-emitter voltage of 100V and a collector current of up to 12A, it provides very high current gain, low saturation voltage, and excellent thermal stability.Housed in a TO-220 package, the BDW94C offers efficient heat dissipation, making it ideal for high-current audio amplifiers, motor drivers, voltage regulators, and industrial switching circuits. Its Darlington configuration ensures enhanced current amplification, enabling it to drive heavy loads reliably in industrial, professional, and hobbyist electronics projects.Click here to view related productsFeatures:Transistor Type: PNP Silicon Darlington Power TransistorPackage: TO-220 (high thermal efficiency)Collector-Emitter Voltage (V<sub>CE</sub>): 100VCollector Current (I<sub>C</sub>): 12APower Dissipation (P<sub>tot</sub>): Up to 160W (with proper heatsink)High Current Gain (hFE): 1000–5000 (typical for Darlington pair)Low Saturation Voltage: Efficient switching and amplificationHigh Thermal Stability: Reliable under heavy current loadsDurable & Reliable: Suitable for long-term professional and industrial useComplementary Device: Works with BDW93C (NPN) for push-pull amplifier stagesApplications:High-Power Audio Amplifiers: Driver and output stages requiring high currentMotor Drivers: Efficiently drives high-current motors, solenoids, and actuatorsVoltage Regulators & Power Supplies: Stable high-current regulationIndustrial Switching Circuits: Heavy-duty power controlRelay & Solenoid Drivers: High-current switching applicationsPush-Pull Amplifier Designs: Complementary with BDW93C (NPN)Educational & Hobby Projects: Suitable for experimentation and prototypingDarlington Amplification Circuits: High current gain for medium-to-high power applicationsbdw94c-transistor-datasheet* Product image for illustration purposes only, actual product may vary.
