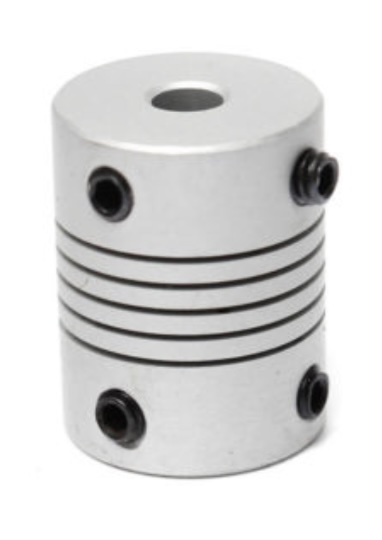

Flexible Shaft Coupling 5 – 10mm

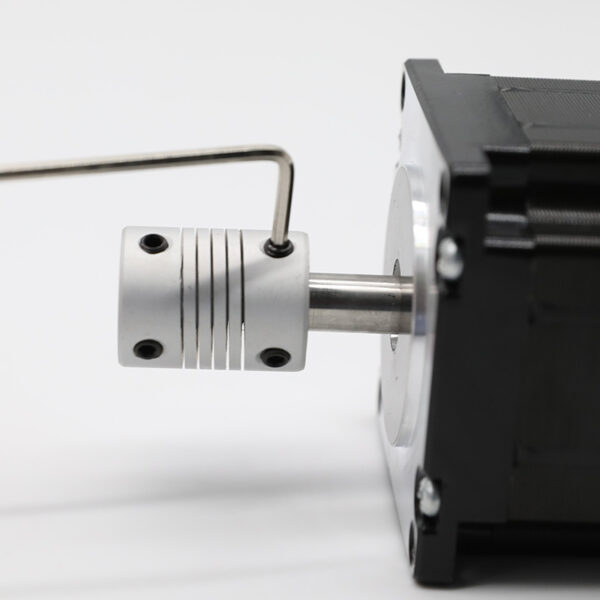

Description This is a 5mm x 10mm Aluminum Flexible Shaft Coupling OD19mm x L25mm CNC Stepper Motor Coupler Connector. Shaft couplings are devices that connect two shafts to transmit power from the driveshaft to the driven shaft while absorbing some degrees of misalignments and mounting errors between the two shafts. Misalignments exist between two shafts as a result of the changes in temperature and deterioration of positioning accuracy over time. Shaft couplings provide mechanical flexibility to allow smooth rotation between the shafts and reduce impact, wear, vibration, noise, and risk of equipment failure. Read more here… The structure is simple, easy to install, buffer, damping, and convenient to disconnect. The size is complete and the surface is smooth. Story reversal characteristics are identical, With the elastic connection, you can absorb vibration, and compensate for radial, angular, and axial misalignment. Shaft coupler Often used to connect servo motor stepper motor, encoder screw driving machine platform, etc.   Specifications: Type: Flexible Shaft Coupling Material: Aluminium Size: 5mm x 10mm. Outside Diameter:19mm Length:25mm. Color: Silver Main dimensions: d1=5mm,d2=10mm,D=19mm,L=25mm Packing List: 1x Flexible Shaft Coupling
