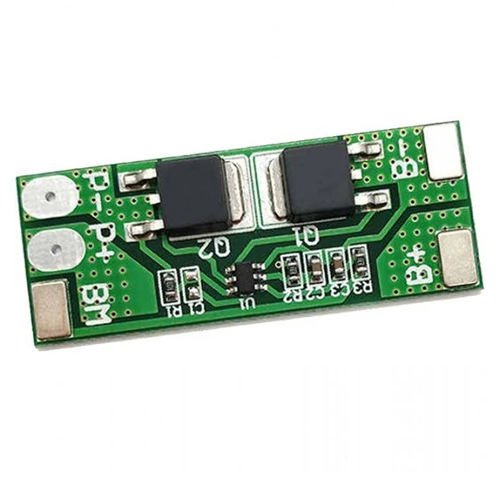

2S 6V 10A LFP 32650 BMS lithium ferro-phosphate Battery Protection

This 2S 6V 10A LFP 32650 BMS lithium ferro-phosphate Battery Protection is perfect for making a 2S 6V LiFePo4 battery pack 3.2V LiFePo4 cells. This is a 2 Series (2S)LiFePo4 Battery Management System (BMS) Module with 8A Continuous protection board. Features: High-accuracy voltage detection circuit terminal of the charger using high voltage device Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit) MOS transistor can control the battery charge and discharge low standby current consumption. 3.2V Lifepo4 BMS: 6.4V (LiFepo4 battery rated voltage) 7.2V (LiFepo4 battery Peak voltage) Specifications : Over charge voltage: 3.65V±0.05V Over discharge voltage: 2.5V±0.05V Max continuous current: 8A Max peak current: 10A Working temperature:-40 to 50 Storage Temperature:-40 to 80 Small current:less than 3uA Life cycle :more than 50000hours Resistance:Less than 300m&Omega Short circuit protection Size: 41x16x3.5mm 2S BMS Connection instruction: B     Connect battery positive B-    Connect battery negative MB   Connect the point between battery 1 & battery 2 P     Charge/discharge positive P-    Charge/discharge negative Package Includes: 1 x2S 6V 10A LFP 32650 BMS lithium ferro-phosphate Battery Protection Related SKU: PRA-RC-1196 Category: Lithium Phosphate BMS
