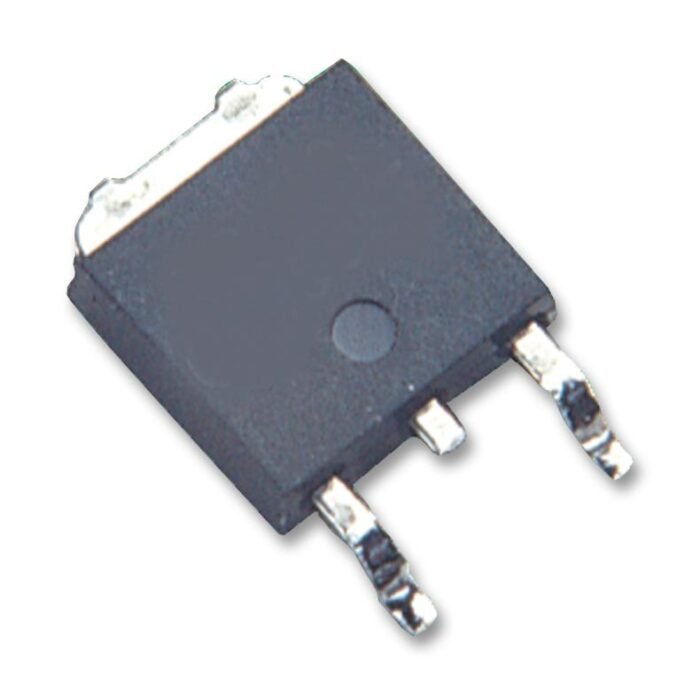

78M05 – 7805 5V Positive Voltage Regulator IC SMD TO 252 DPAK Package

78M05 – 7805 5V Positive Voltage Regulator IC SMD TO 252 DPAK Package The 78M05 (also known as 7805) is a fixed 5V positive linear voltage regulator designed to provide a stable and reliable 5V DC output for a wide range of electronic applications. It is part of the 78xx family of positive voltage regulators, widely used in power supply circuits, embedded systems, and digital electronics.This SMD version comes in a TO-252 (DPAK) surface-mount package, offering good thermal performance while saving PCB space. The regulator includes built-in current limiting, thermal shutdown, and short-circuit protection, ensuring safe and reliable operation.Click here to view related productsApplications 5V regulated power suppliesMicrocontroller and logic circuit power suppliesEmbedded systems and development boardsDigital and analog circuitsIndustrial control systemsConsumer electronicsPower supply modulesFeaturesFixed Output Voltage: 5V DCRegulator Type: Positive linear voltage regulatorPackage: TO-252 (DPAK) SMDOutput Current: Up to 500mA (typical for 78M series, with proper heatsinking)Built-in thermal shutdown and current limiting protectionShort-circuit protectedGood line and load regulationRequires minimal external componentsCompact SMD package with good heat dissipationHigh reliability and stable performance*Product image for illustration purposes only, actual product may vary.
