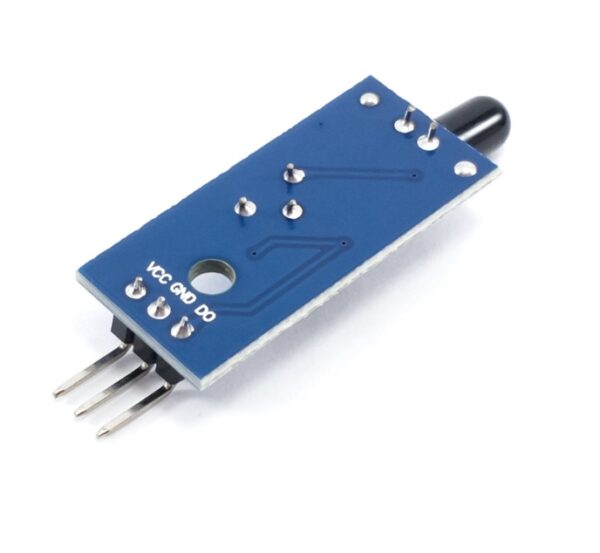

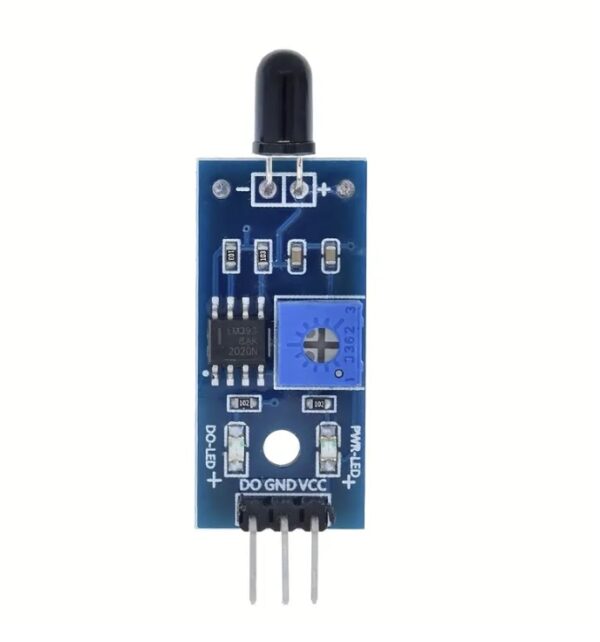

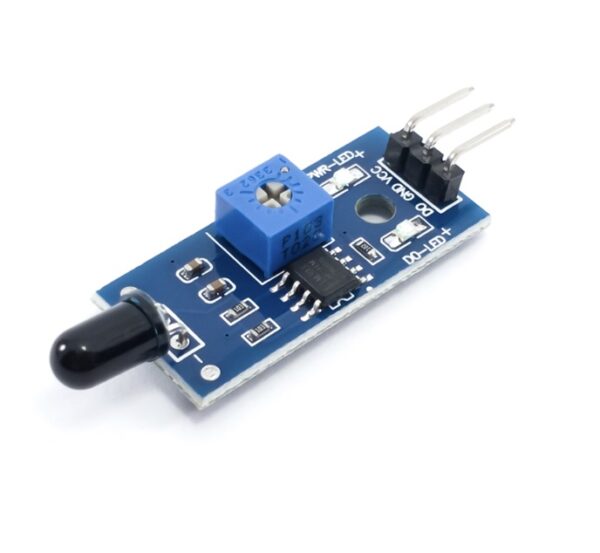

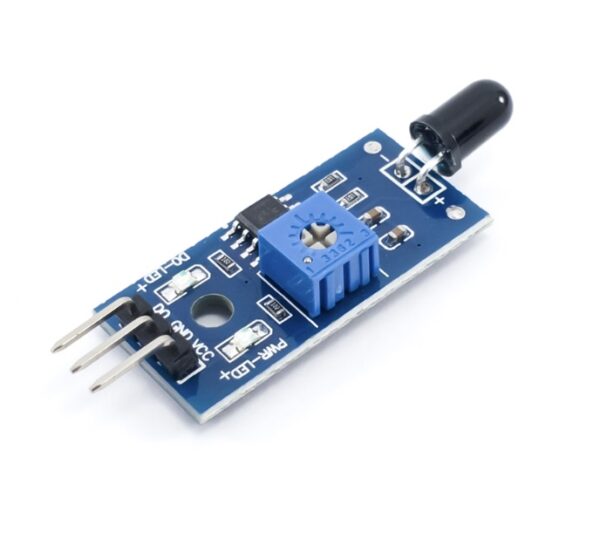

Infrared Flame Detect Sensor

Description Specifications: Sensor Type: Infrared Flame Detection Sensor Detection Wavelength: Typically between 760 nm to 1100 nm (IR spectrum) Detection Distance: Up to 100 cm, depending on flame size and sensitivity settings Field of View (FOV): 60° to 120°, depending on the model Output Signal: Digital Output: High (1) when flame is detected, Low (0) when no flame is detected Response Time: Fast response, typically less than 15 milliseconds Power Supply: 3.3V to 5V DC Power Consumption: Typically < 20 mA Performance: Sensitivity: High sensitivity to IR radiation from flames Temperature Range: Can detect flames in temperatures ranging from -25°C to 85°C Noise Immunity: Good resistance to ambient light interference Applications: Primary Uses: Flame detection in fire alarm systems, safety equipment, combustion monitoring, gas leak detection systems, and industrial safety. Environmental Specifications: Operating Temperature: -25°C to 85°C Storage Temperature: -40°C to 125°C Humidity Range: 10% to 95% RH (non-condensing) Features: Adjustable Sensitivity: Some models feature a potentiometer to adjust sensitivity. LED Indicator: Onboard LED that lights up when a flame is detected. Output Modes: Digital Mode: Direct high/low output indicating flame presence. Pinout: VCC: Power supply (3.3V to 5V) GND: Ground DO: Digital output Screenshot Packing List: 1 x Infrared Flame Detect Sensor
