MG996R Servo Motor – 180° Iron Gear

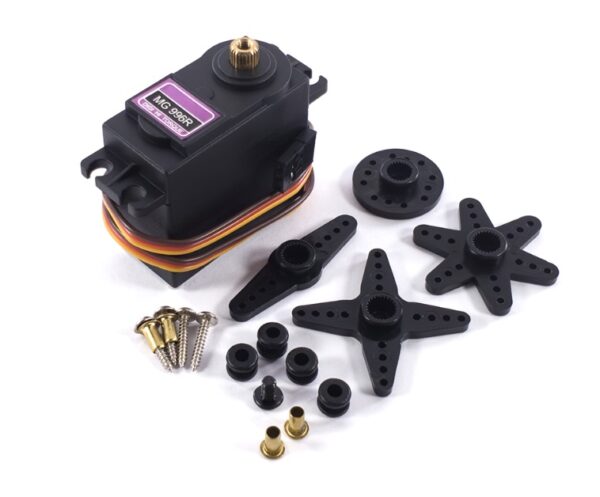

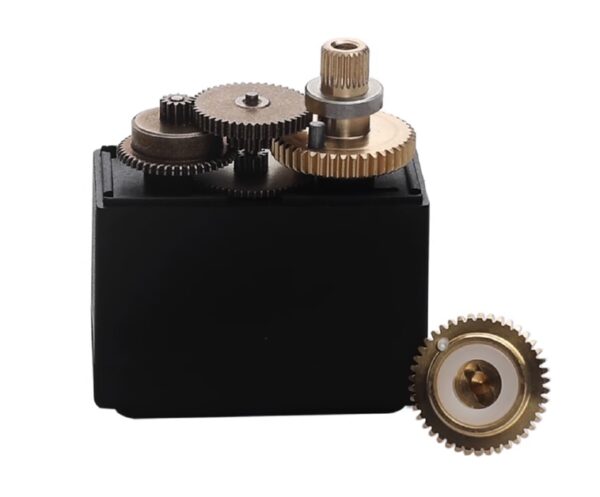

Description Specification: Model: MG996R Range of Motion: 180° Operating Voltage Range: 4.8 – 6.0VDC No-Load Speed: 0.18sec/60° @ 4.8V / 0.15sec/60° @ 6V No-Load Current: 160mA @ 4.8V / 170mA @ 6V Stall Torque: 9kg-cm @ 4.8V / 13kg-cm @ 6V Stall Current: 1100mA ±10% @ 4.8V / 1300mA ±10% @ 6V Control Signal: Analog (PWM) Midpoint Position: 1500µsec (Centering Error = ≤ 1°) PWM Range: 500 ~ 2500µsec Dead Band Width: 8µsec Cable Length: ~27cm Servo Connector: 3-Pin JR (2.54mm Pitch) Output Shaft: 25T (Diameter = ~5.9mm) Gear Material: Iron & Copper Combination of Gears Bearing: No Bearing Dimensions: ~(40.5mm x 20mm x 39.5mm) Wire Colour Description Brown Wire-> Ground Red Wire-> Supply Voltage (4.8 – 6VDC) Orange Wire-> Signal Pulse Input Screenshot Screenshot Screenshot Screenshot Screenshot Screenshot Packing List: 1 x MG996R Servo Motor – Analog 180° Iron Gear 1 x Servo Accessories
