Cron Craft V2 CNC Machine Kit – LARGE

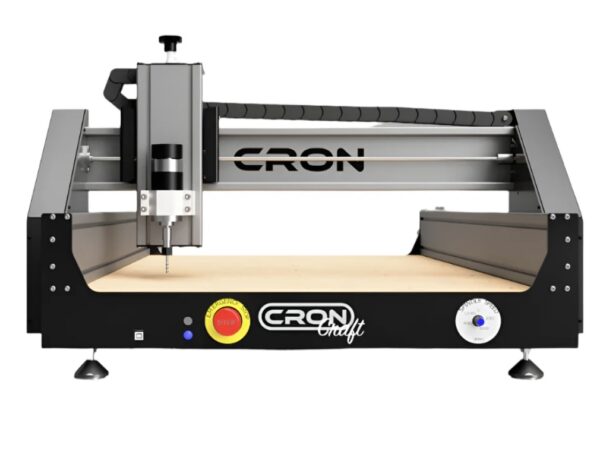

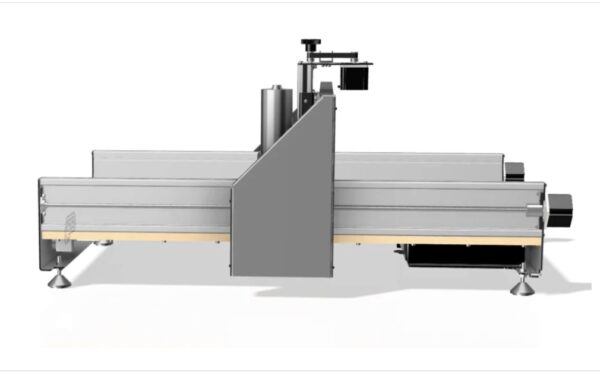

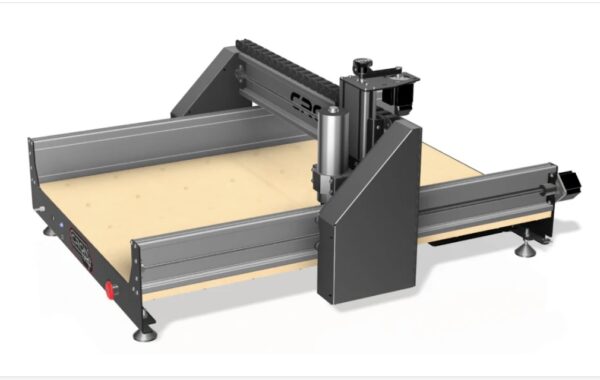

Description This is the Version 2 of the Cron Craft CNC machine kit.  This new upgraded model will be available from October 2024.  The Cron Craft V2 CNC machine kit is a desktop size, high quality CNC machine. CNC has never been this easy!  The CNC machine is sold as a kit and now come semi-assembled.  The sub assemblies has already been built, this means it should take you less than a day to assemble your CNC machine. It is available in 2 size options (Medium & Large), the machine size and cutting area are as follows: Cutting Area Machine size Medium Size 550 x 300mm (wide x long) 887 x 540 x 550mm (w x d x h) Large Size 550 x 800mm (wide x long) 887 x 1045 x 550mm (w x d x h) 3 air cooled spindle options are available and 2 drive options.  The spindle options are: 400W brushed spindle with ER11 collet holder and 12 000RPM maximum speed 500W brushless spindle with ER16 collet holder and 12 000RPM maximum speed 1.5kW brushless spindle with ER11 collet holder and 24 000RPM maximum speed (this spindle is only available with lead screw drive option) The drive options are: Belt drive Lead Screw drive This kit is perfect for cutting wood, PCBs, perspex and even aluminium. What is included: All the parts you need to build the CNC machine The wires are pre-soldered so that you can plug and play Z-Probe for accurate Z homing Power Cable USB cable Collet spanner 5 cutting bits Workpiece clamps What you will need: Computer with internet connection Assembly Tools Machine Specifications: Dimensions Machine size options: Medium or Large Medium CNC cutting area: 550 x 300mm (wide x long) Large CNC cutting area: 550 x 800mm (wide x long) CNC Z travel: 120mm CNC Z cutting depth: 60mm Medium CNC outer dimensions: 887 x 540 x 550mm (width x depth x height) Large CNC outer dimensions: 887 x 1045 x 550mm (width x depth x height) Medium CNC weight: 33kg Large CNC weight: 38kg Spindle Spindle options: 400W Brushed, 500W Brushless or 1.5kW Air Cooled Spindle 400W Spindle top speed: 12 000 RPM 500W Spindle top speed: 12 000 RPM 1.5kW Spindle top speed: 24 000 RPM Collet size for 400W spindles: ER11 Collet size for 500W spindles: ER16 Collet size for 1.5kW spindles: ER11 Cooling for all 3 spindles: Air cooled Drives Drive options: Belt drive or Lead screw drive  (Lead screw driver is required when choosing the 1.5kW spindle option.) Motors: NEMA 23 Stepper motors (X, Y and Z Axis) Feed rate with belt drive: 5000mm/min Feed rate with lead screw drive 3000mm/min Positional resolution with belts: 10 micron Positional resolution with lead screws: 2.5 micron Positional repeatability with belts: 8 micron (no load) Positional repeatability with lead screws: 5 micron (no load) Interface Connection option: USB cable connection Communication Software: Easel/ CNCJS or Universal G-Code Sender Toolpath generation software: Easel or Fusion 360 Power supply: 220-240V, 50Hz AC (7A max) End stops: Included Z-Probe: Included Laser attachment: Optional Environment Operating temperature: 15 – 30°C Noise level, spindle only: < 60dB Noise level, when cutting: < 75dB Warranty: 6 Month carry in warranty The latest assembly instruction can be found here: Cron Craft Assembly Instructions The downloadable data on the Mega Upload folder can be found here: Cron Craft Mega Upload Folder NOTE: A delivery of R200.00 ex VAT will be charged for Heavy Item dispatch.
