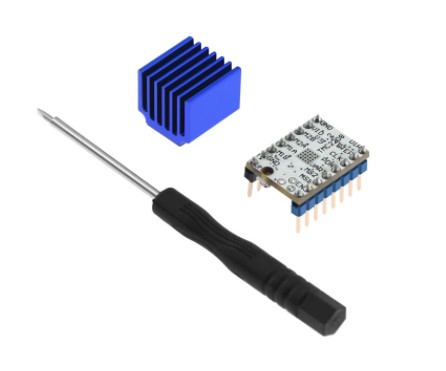

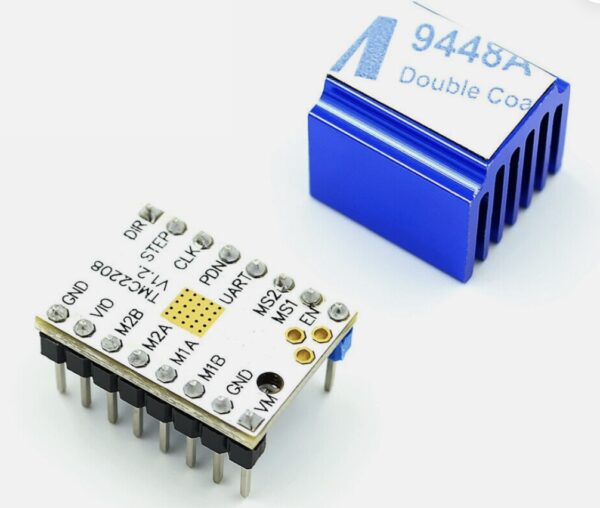

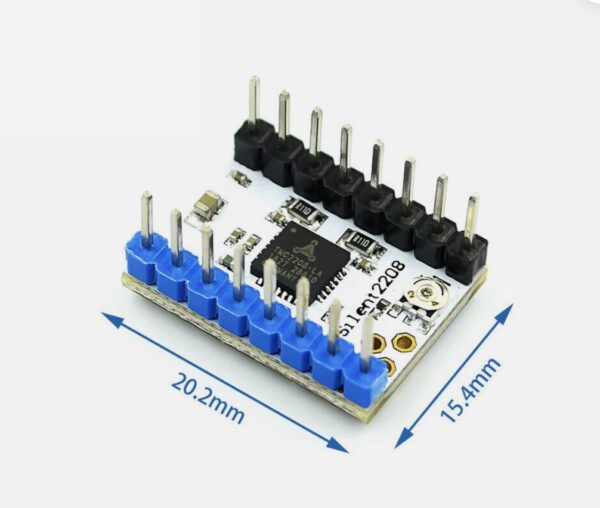

TMC2208 Stepper Motor Driver 1.4A

Description The TMC2208 stepper motor driver is a device that is used to control the movement of a stepper motor. It is designed to be used in conjunction with a microcontroller or other control system, and it is capable of driving a stepper motor with a high degree of accuracy and smoothness. The TMC2208 is a highly integrated and efficient stepper motor driver that is capable of driving motors with a maximum current of up to 2.2A. It uses a technology called “SpreadCycle” to control the motor, which allows it to operate smoothly and quietly at high speeds. The driver also includes a number of features that make it easy to use and configure, including a UART interface, configurable current control, and automatic load detection. The TMC2208 is often used in a variety of applications that require precise control of a stepper motor, such as 3D printers, CNC machines, and other automated systems. It is a popular choice for hobbyists and professionals alike due to its high performance and ease of use. TMC2208 single-axis stepper motor drive chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivisions; Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even in the pulse rate is limited system can still be perfect to achieve sinusoidal control; Both components have pulse / direction input, can be completely independent operation. The configuration is implemented via digital input. Manufacturer – UNBRANDED Model No. – TMC2208 V3.0 Control Interface – UART Native Microsteps – Up to 1/16 MicroPlyer Microsteps – Up to 1/256 Logic Voltage (VIO) – 3V to 5V Motor Supply Voltage (VM) – 4.75V to 36V Rated Motor Phase Current – 1.4A RMS | 2A Peak Internal Voltage Regulator – Enabled RDSon – ≤0.3Ω TMC Features – MicroPlyer – SpreadCycle – CoolStep – Stall Detection – StallGuard2 – StealthChop2 Weight – ±2g Dimensions – 15 x 20mm Packing List: 1 x TMC2208 Stepper Driver Module 1 x Heat Sink 1 x Mini Screwdriver
