Vibration Motor Module

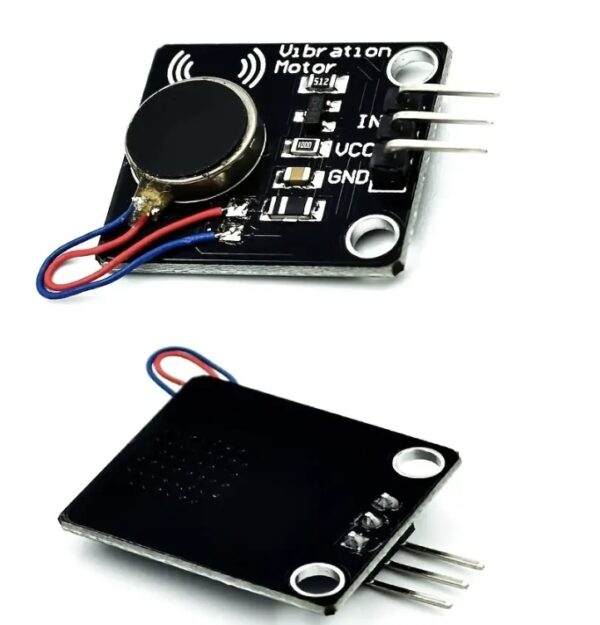

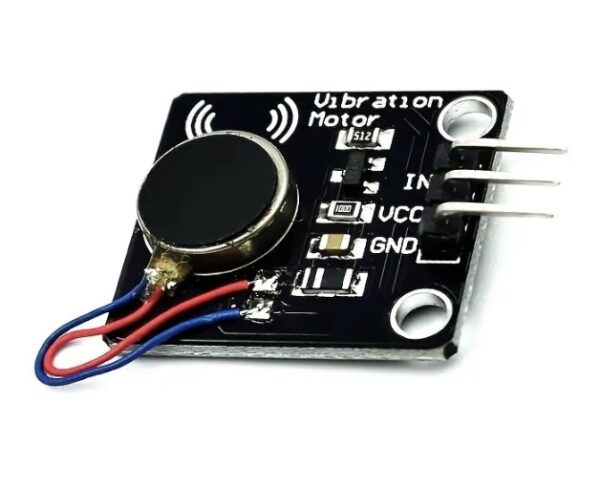

Description This module is a breakout board for a tiny vibration motor. These are perfect for projects where you need a non-audible indicator, and is similar (But larger) to what you might find in most mobile phones today. The module requires a supply voltage and a digital high signal on the “IN” pin to start the motor. This small built-in module uses a high-quality vibration motor. You can make some interesting Arduino projects such as an alarm, a notifier or even a vibrating robot! When the input is high, the motor will vibrate just like your cell phone. You can control the ON/OFF or vibration intensity through digital signal or PWM signal. The module adopts a high-quality mobile phone vibration motor; the vibration effect is evident, it is amplified and suitable as a non-audible indicator. The module can easily complete the conversion of the electrical signal to mechanical vibration. Features / Specs Operating Voltage: 3.0 – 5.3VDC Starting Voltage: 3.7VDC Rated Speed (Minimum): 9000RPM Operating Current: Up to 60mA Startup Current: Up to 90mA Insulation Resistance: 10M-Ohms Standard 2.54mm Pitch Pin Header Screenshot Packing List: 1 x Vibration Motor Module
