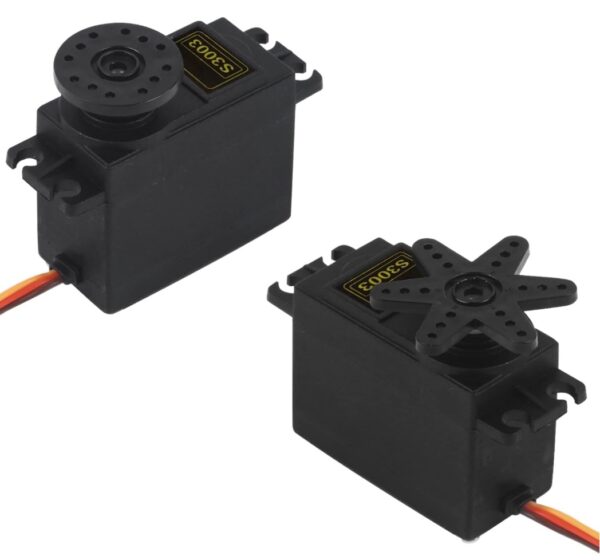

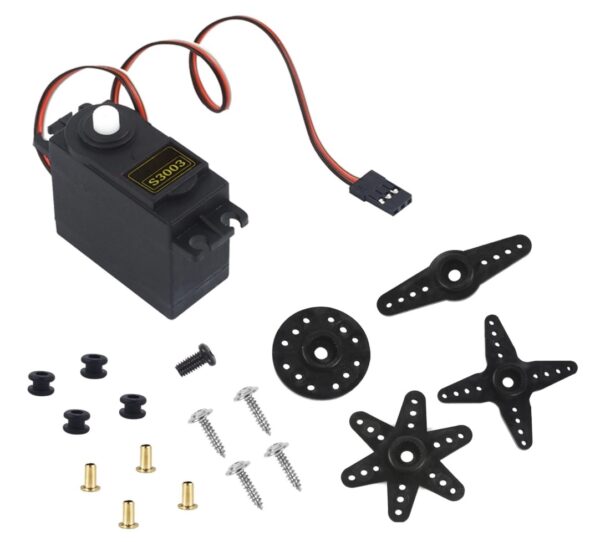

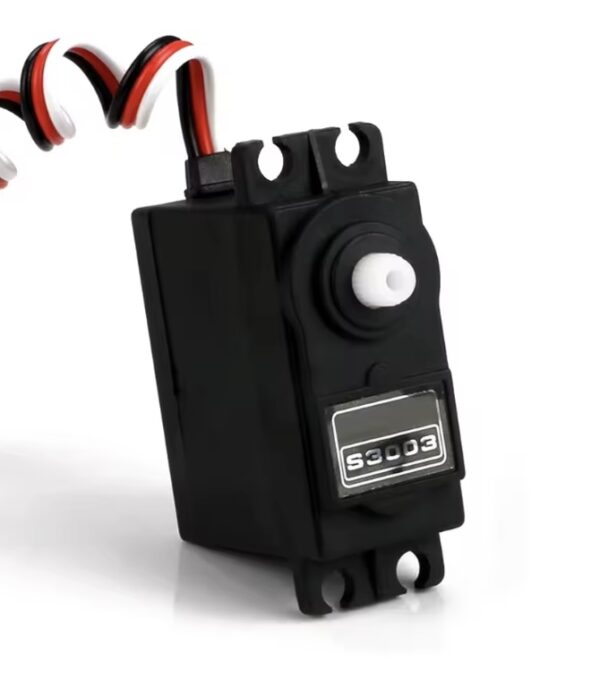

S3003 Standard Micro Servo Motor

Description The S3003 Servo Motor is a small hobbyist servo motor capable of drawing high currents. It operates on a low voltage of between 4.8V and 6V, and is most commonly used for RC vehicles like planes, boats and quadcopters. Whilst typical Servo Motors are rotary or linear actuators designed for precision positioning, the S3003 can be modified for continuous rotation, providing strong torque with no limits to the angular or linear positioning. This servo motor has a stall torque of between 3.2kg-cm and 4.2kg-cm depending on the supplied voltage, with a no-load speed of between 0.23sec/60° and 0.19sec/60°. This makes it ideal for use in RC Vehicle Kits, as the torque and speed can be adjustable mid-operation by altering the supplied voltage. So, whether you want to use it to spin rotors on a plane or copter, act as a pulley mechanism in small-scale robotics, or for any other common applications, the S3003 Servo Motor offers excellent power for a very affordable price. Specifications: Operating Voltage – 4.8V to 6.0V No-Load Speed (4.8V) – 0.23sec/60° No-Load Speed (6.0V) – 0.19sec/60° Stall Torque (4.8V) – 3.2kg.cm Stall Torque (6.0V) – 4.1kg.cm Pulse Amplitude – 3V to 5V Operating Temperature – -20 to 60°C Continuous Rotation Modifiable – Yes Motor Type – 3 Pole Ferrite Gear Type – Straight Cut Spear Cable Length – 150mm Dimensions – 40mm x 20mm x 44mm Weight – 37.2g Packing List: 1 x S3003 Standard Micro Servo Motor 1 x Servo Acc Set
