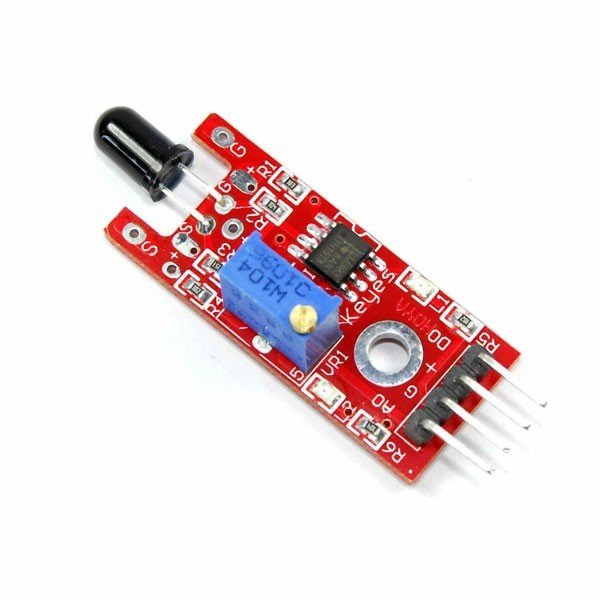

KY-026 Flame Sensor Module

The Flame Sensor Module can detect flames in the 760-1100 nanometer wavelength range. Small flames like a lighter flame can be detected at roughly 0.8m. The detection angle is roughly 60 degrees and the sensor is particularly sensitive to the flame spectrum.An on-board LM393 op-amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output and sensitivity can be adjusted via the blue potentiometer.Note – This Flame Sensor Module is used to detect fire/flame source or other light sources of the wavelength in the range of 760nm 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation.The sensor can be a great addition in a firefighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW. The module has 2 outputs: Analogue, which gives a real-time voltage output signal on thermal resistance, and digital which allows temperature thresholds to be set via a potentiometer.Features :-High Photo SensitivityFast Response TimeSensitivity adjustableDetects a flame or a light source of a wavelength in the range of 760nm-1100 nm.Detection range: up to 100 cm.Adjustable detection range.Detection angle about 60 degrees, it is sensitive to the flame spectrum.Comparator chip LM393 makes module readings stable.Operating voltage 3.3V-5V.Digital and Analog Output.Power indicator and digital switch output indicator.* product image for illustration purposes only. actual product may vary.
