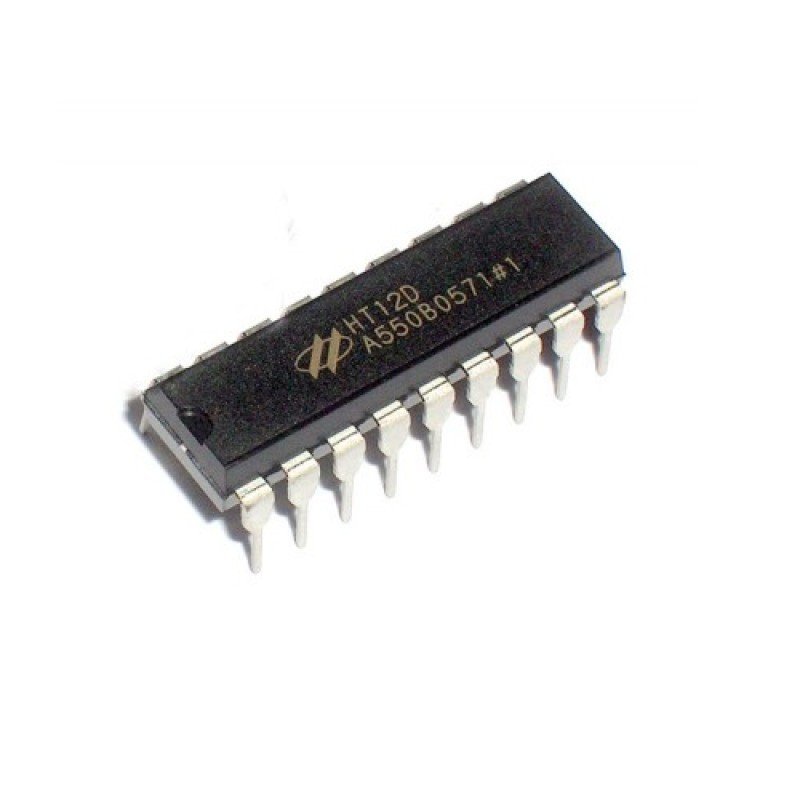

HT12D RF Decoder IC DIP 18 Package

HT12D RF Decoder IC DIP 18 PackageThe HT12D is a popular RF decoder IC designed for use in wireless remote control and data transmission systems. It is commonly paired with the HT12E encoder IC to form a reliable RF communication link.The HT12D receives a serial encoded data stream (typically from an RF receiver module), decodes it, and converts it back into parallel address and data outputs. It supports 12-bit decoding consisting of 8 address bits and 4 data bits. When the received address matches the local address, the IC validates the transmission and outputs the data on its data pins.Click here to view related productsApplicationsRF remote control receiversWireless relay and switch boardsHome automation systemsSecurity and alarm systemsWireless control for robots and toysIndustrial wireless control systemsFeaturesType: 12-bit RF Decoder ICDecoding format: 8 address bits 4 data bitsWorks with HT12E encoder ICConverts serial input to parallel outputsValid Transmission (VT) output indicatorHigh noise immunityBuilt-in oscillator (requires only external resistor)Low power consumptionLatch-type data outputsReliable and widely used in RF receiver systemsPackage: DIP-18 (Through-hole)Easy to interface with microcontrollers and relay driversHT12D-Decoder-IC Datasheet*Product image for illustration purposes only, actual product may vary.
