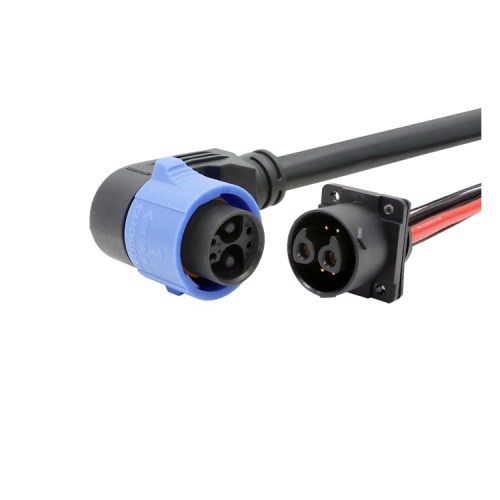

Chogori Okinawa Connector – Male & Female 4 2 Pin Set

Chogori Okinawa Connector – Male & Female 4 2 Pin Set: Charging & discharging  Chogori Okinawa Connector – Male & Female 4 2 Pin Set is a rugged and reliable electrical interface solution used widely in electric scooters, e-rickshaws, and battery-operated vehicles. Specially designed for Okinawa EV systems, this connector supports power signal transmission in one compact, waterproof housing. The 4 2 pin configuration includes: 4 Power Pins (for high-current motor or battery lines) 2 Signal Pins (for throttle, brake, BMS, or communication lines) This makes the connector ideal for BLDC motor controllers, battery charging ports, or throttle/display module wiring. The locking male-female pair ensures vibration resistance and prevents accidental disconnection, even in rough road conditions. Made from high-temperature nylon and brass contacts, the connector features IP67 waterproof sealing, making it suitable for outdoor and all-weather applications. ⚙️ Technical Specs: Type: Chogori 4 2 pin connector (Male Female) Pins: 4 Power 2 Signal Current Rating: Up to 20A (Power), 3A (Signal) Voltage: Up to 60V DC Waterproof Rating: IP67 Material: Nylon shell, copper alloy pins Application: EV motor, battery, controller, throttle ⚡ Applications: Okinawa electric scooter harness Battery to controller main cable BMS signal power combination interface E-bike and e-rickshaw motor connection Custom EV retrofit projects Mating Cycle：≥5,000 Cycles Voltage Rating：125V DC (Power) 80V DC (Signal) Operating  Temperature：-40°C to 105°C Pullout Force：<100N Current Rating：60A 5A IP Rating：IP67 Mated,  Panel Side Wire Processing：Crimp (Power) / Panel Side Solder (Signal) / Plug Side Withstand Voltage：1,500V AC Salt Spray：5% Nacl, 48H Wire Gauge：Power 8AWG/ Max, Signal 20AWG/ Max Insulation Resistance：>100MΩ Flammability Rating：UL94V-0 (Plastic Material)   1X chogori Mate60 2 4 Pin (60A 5A) male and female pair Related SKU: PRA-RC-1250 Category: Connector Tags: chogori mate60, chogori 2 4 pin connector, 60a 5a connector, chogori mate60 2 4 pin, high-power connector
